Tableting Punches & Dies
Matched upper punches, lower punches and dies for powder compaction. Cup geometry and press compatibility need joint review.
Designs and configurations ↓Material options
Tool steel · Stainless steel · Tungsten carbide
The final grade and treatment are confirmed after reviewing your drawing and operating conditions.
Dimensions, tolerances, hardness, quantity and delivery are confirmed in the quotation. No fixed stock specification is implied.
Designs and configurations
Select function and geometry, then confirm material, fits and treatment. Options may be combined; dimensions follow the agreed drawing.

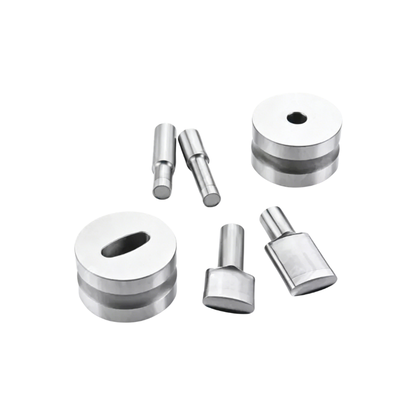

Custom tablet shapes & punch profiles
Custom tablet shapes and punch profiles for your press and powder.
Send inquiry now →

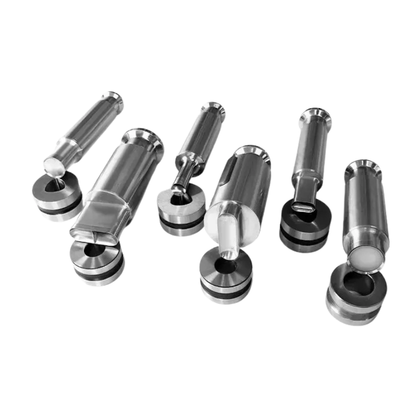

Custom engraved punches and dies
Engraved punches and dies; confirm reading direction and depth.
Send inquiry now →

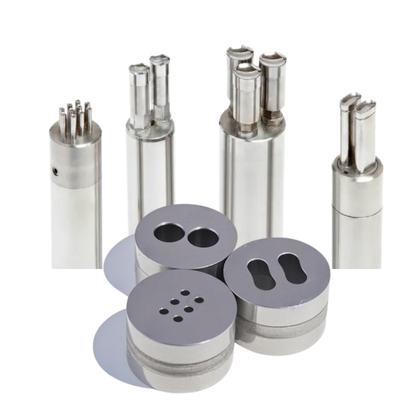

Multi-tip tablet tooling
Multi-tip tooling designed for your output and tablet layout.
Send inquiry now →

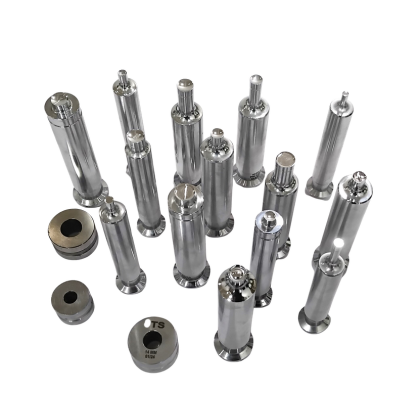

Press-specific custom tooling
Press-specific tooling built to machine interface and tablet spec.

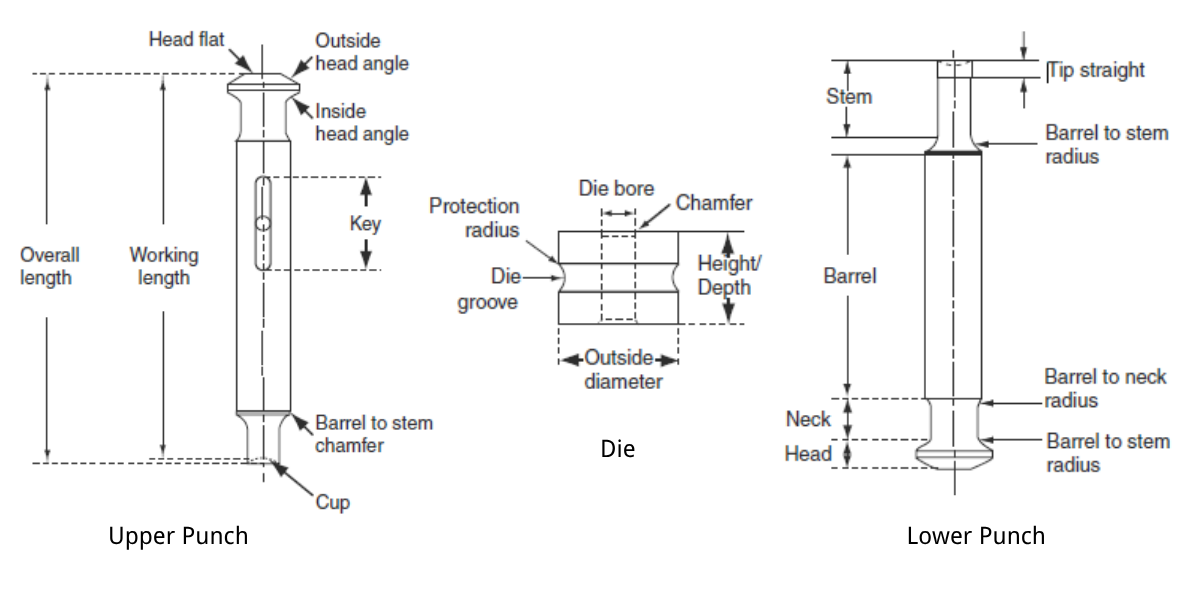

Send inquiry now →Industries and operating scenarios
Powder-compaction tooling with defined tablet shape, embossing and machine interfaces.
Pharmaceutical, nutraceutical and industrial powder tooling: define the set by powder, tablet shape and press interface, with material and cleaning requirements separately agreed.
Send inquiry now →
Materials and treatment options
-
Tool steel
Specify grade and heat treatment for wear, load, temperature and corrosion; tool steel is a family, not a single grade.
-
Stainless steel
Select a suitable grade for powder corrosion and cleaning, then confirm hardness, finish and media compatibility.
-
Tungsten carbide
Evaluate carbide dies or working sections for abrasive powders, considering compression load, support and fracture resistance.
Surface treatments and finishes
-
Cup and die-bore polishing
Preserve tablet profile, score lines and engraving; define finish for powder release and cleaning.
-
Anti-sticking and wear coatings
Assess powder, cleaning media and material compatibility; coating names do not replace compression validation or required documentation.
Family-specific questions
Can tablet tooling be matched by appearance?
Upper punch, lower punch and die form a tooling system; appearance alone does not establish compatibility. Confirm press interfaces, cups, powder and cleaning requirements.
Which dimensions and operating details are needed for a quote?
Press model and tooling standard; tablet profile and cup depth; powder characteristics and engraving
