Designs and configurations
Guide Posts & Pillars
Ground posts align moving mold plates through a mating bushing. Plain and nitrided versions are selected with the complete guide system.
Designs and configurations ↓Material options
SUJ2 · Bearing steel · 20Cr
The final grade and treatment are confirmed after reviewing your drawing and operating conditions.
Dimensions, tolerances, hardness, quantity and delivery are confirmed in the quotation. No fixed stock specification is implied.
Designs and configurations
Select function and geometry, then confirm material, fits and treatment. Options may be combined; dimensions follow the agreed drawing.

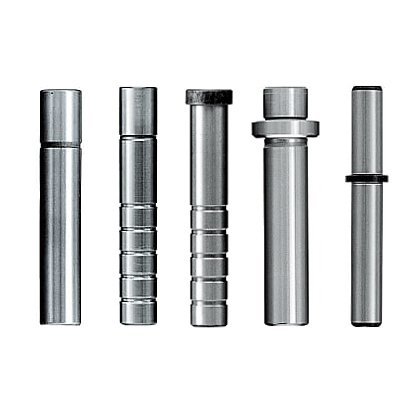

Stripper guide pins
Guide the stripper plate in stamping dies—maintain vertical alignment during punch return and reduce lateral load on the die.
Send inquiry now →

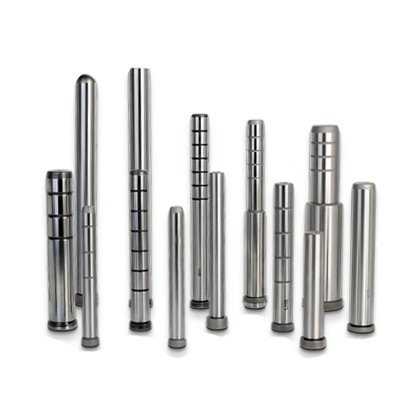

Injection molding guide pins
Align core and cavity halves precisely to prevent uneven wear and part defects—core of the injection mold positioning system.
Send inquiry now →

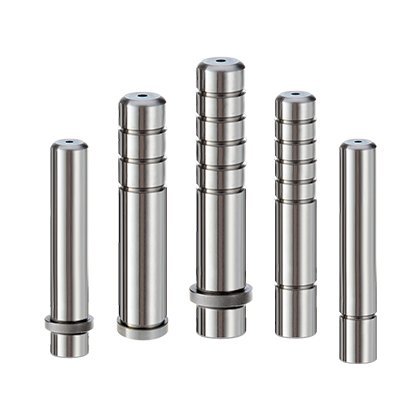

Mold guide pins
Used across plastic, die-casting and progressive molds as core positioning and guidance components.
Send inquiry now →Materials and treatment options

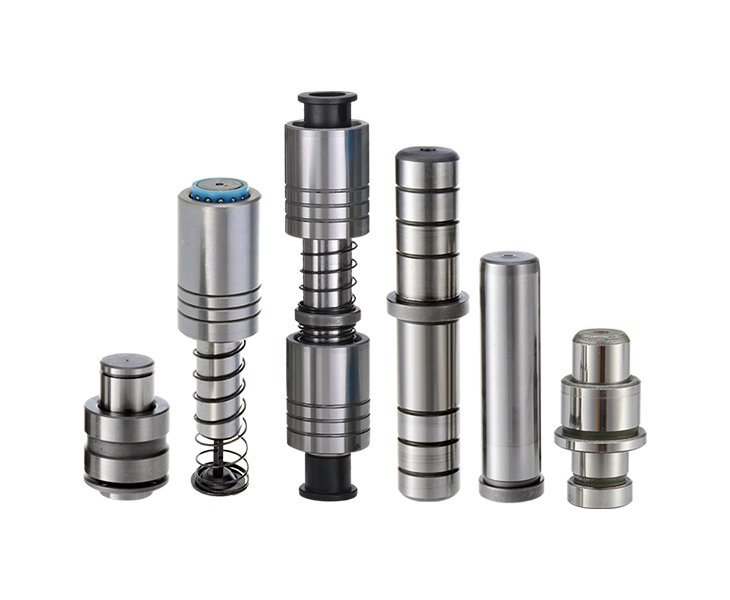

Guide pins are made from quality alloy steel with heat treatment and surface processing for wear resistance and hardness—options from standard hardened shafts to precision-ground and coated versions per your mold duty.
Send inquiry now →
How to choose

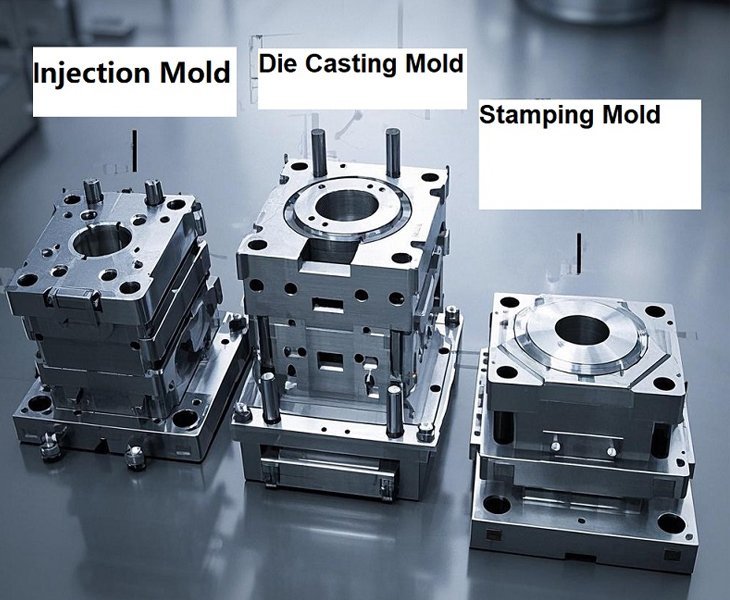

Selection should follow functional requirements—not size alone. Consider mold type, positioning accuracy, cycle, load and mating bushing style for fit life and stable production.
Send inquiry now →
Family-specific questions
What is the difference between guide pins and locating pins?
Guide pins provide continuous alignment through repeated cycles; locating pins mainly set initial position.
Can guide pins be used without guide bushings?
In most mold applications, pins work with bushings to maintain precision and reduce wear.
What factors affect guide pin service life?
Material quality, surface treatment, lubrication and fit with the mating bushing all affect service life.
